SKU: 13-2007
Pack Size: 100 µL
  • Type:  Polyclonal
  • Host:  Rabbit
  • Applications: CUT&RUN, WB, IP
  • Reactivity:  Human, Mouse (predicted)
  • Format:  Antigen affinity-purified
  • Target Size:  122 kDa


This antibody meets EpiCypher's “CUTANA Compatible” criteria for performance in Cleavage Under Targets and Release Using Nuclease (CUT&RUN) and/or Cleavage Under Targets and Tagmentation (CUT&Tag) approaches to genomic mapping. Every lot of a CUTANA Compatible antibody is tested in the indicated approach using EpiCypher optimized protocols and determined to yield peaks that show a genomic distribution pattern consistent with reported function(s) of the target protein. SNF2H/SMARCA5 antibody produces CUT&RUN peaks above background (Figure 1) that overlap with H3K4me3 (Figures 1-2), consistent with its known role as the ATP-dependent helicase subunit of the ISWI chromatin remodeler complex [1].

Validation Data

CUT&RUN was performed on 500k K562 cells with either SNF2H (0.1 µg), H3K4me3 positive control (EpiCypher 13-0041; 0.5 µg), or IgG negative control (EpiCypher 13-0042; 0.5 µg) antibodies using the CUTANA™ ChIC/CUT&RUN Kit v2.0 (EpiCypher 14-1048). Library preparation was performed with 5 ng of DNA (or the total amount recovered if less than 5 ng) using the CUTANA™ CUT&RUN Library Prep Kit (EpiCypher 14-1001/14-1002). Both kit protocols were adapted for high throughput Tecan liquid handling. Libraries were run on an Illumina NextSeq2000 with paired-end sequencing (2x50 bp). Sample sequencing depth was 2.4 million reads (IgG), 4.1 million reads (H3K4me3), and 5.7 million reads (SNF2H). Data were aligned to the hg19 genome using Bowtie2. Data were filtered to remove duplicates, multi-aligned reads, and ENCODE DAC Exclusion List regions.

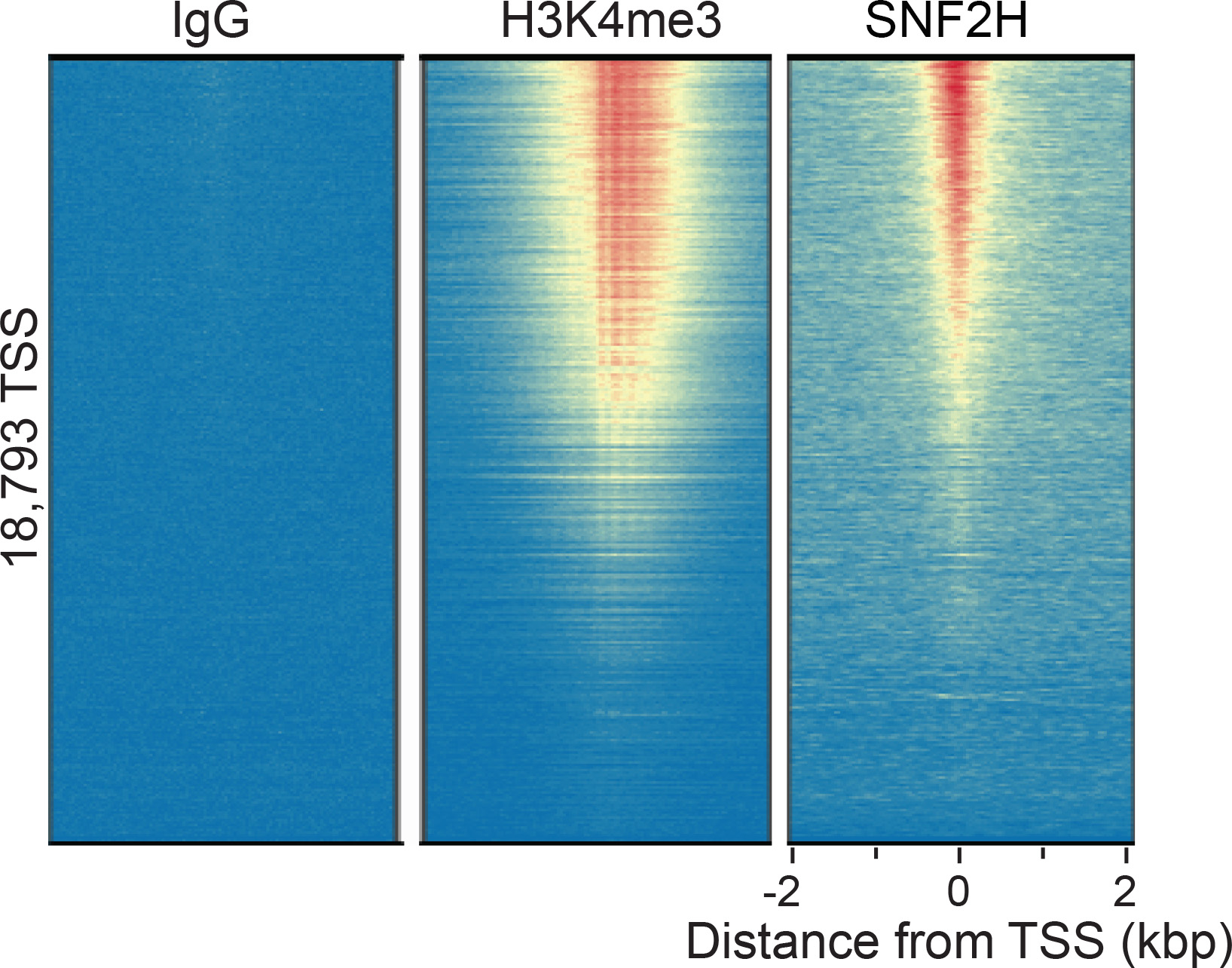

Figure 1: SNF2H peaks in CUT&RUN
CUT&RUN was performed as described above. Peaks were called using MACS2. Heatmaps show SNF2H peaks relative to IgG negative control antibody and H3K4me3 positive control antibody in aligned rows ranked by intensity (top to bottom) and colored such that red indicates high localized enrichment and blue denotes background signal.

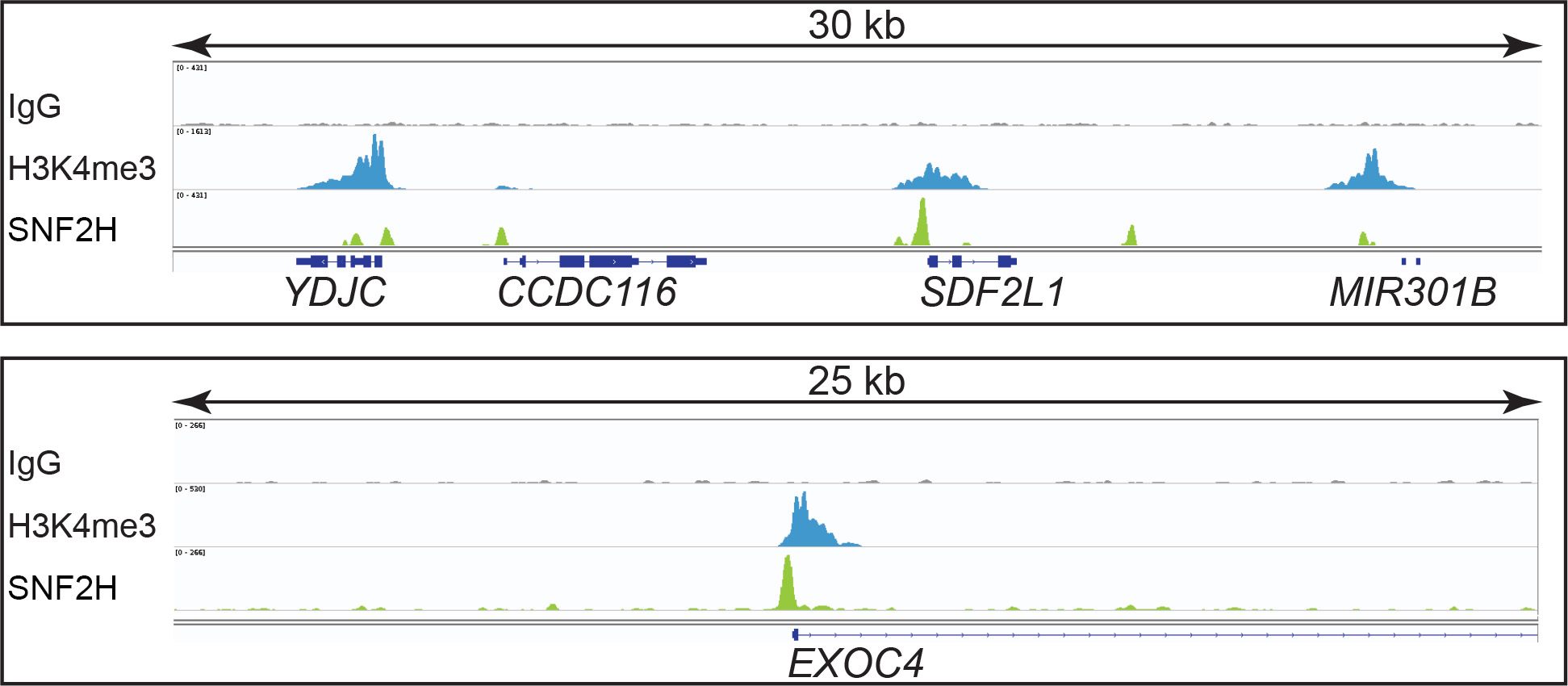

Figure 2: SNF2H CUT&RUN representative browser tracks
CUT&RUN was performed as described above. Gene browser shots were generated using the Integrative Genomics Viewer (IGV, Broad Institute). Two gene loci show overlap of SNF2H and H3K4me3 peaks, consistent with the reported function of SNF2H as a subunit of the ISWI chromatin remodeler complex [1].

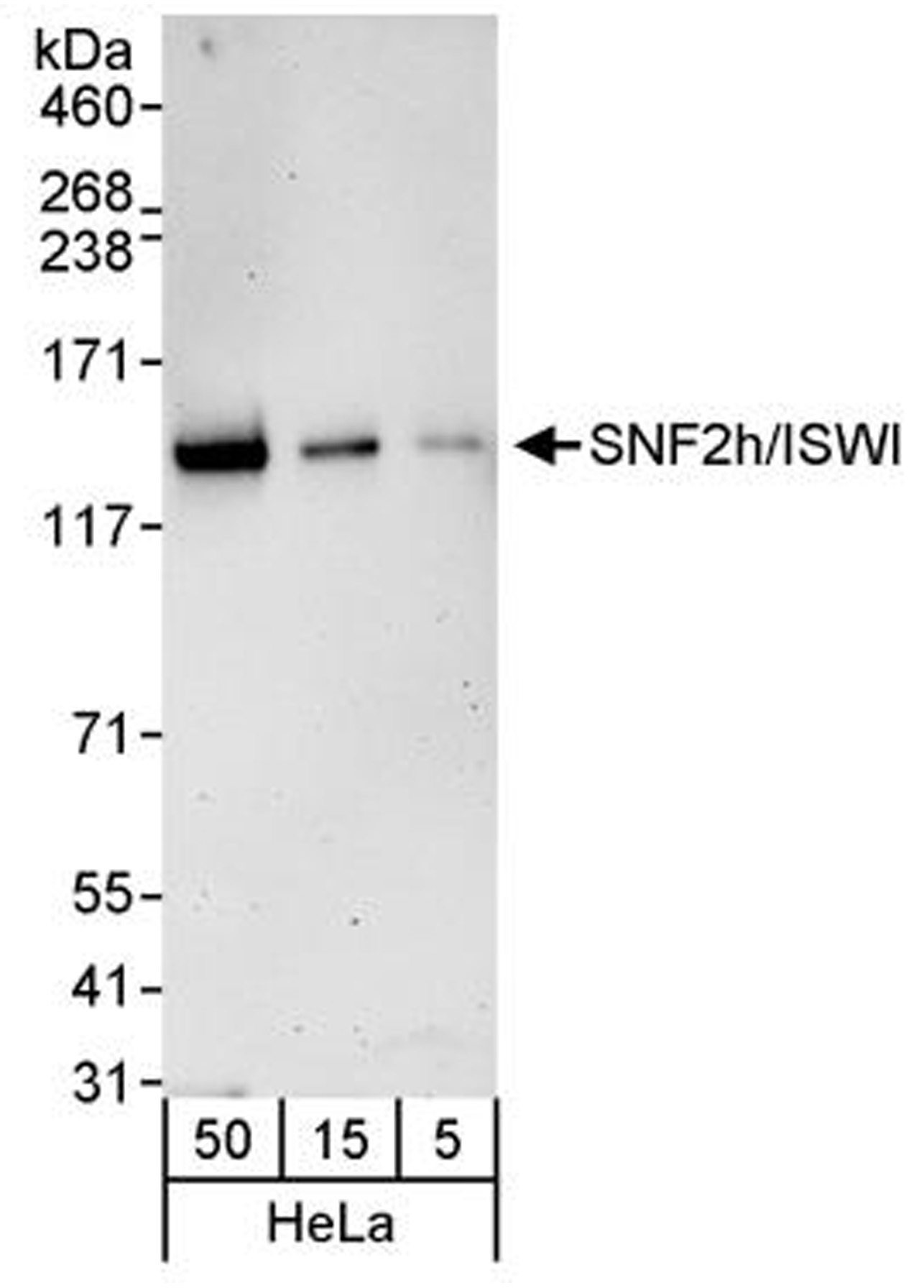

Figure 3: Western blot data
Whole cell lysates were isolated from HeLa cells using NETN lysis buffer. The indicated amounts (µg) of lysate were loaded onto a 4-8% SDS-PAGE gel and analyzed under standard western blot conditions using SNF2H antibody (0.04 µg/mL).

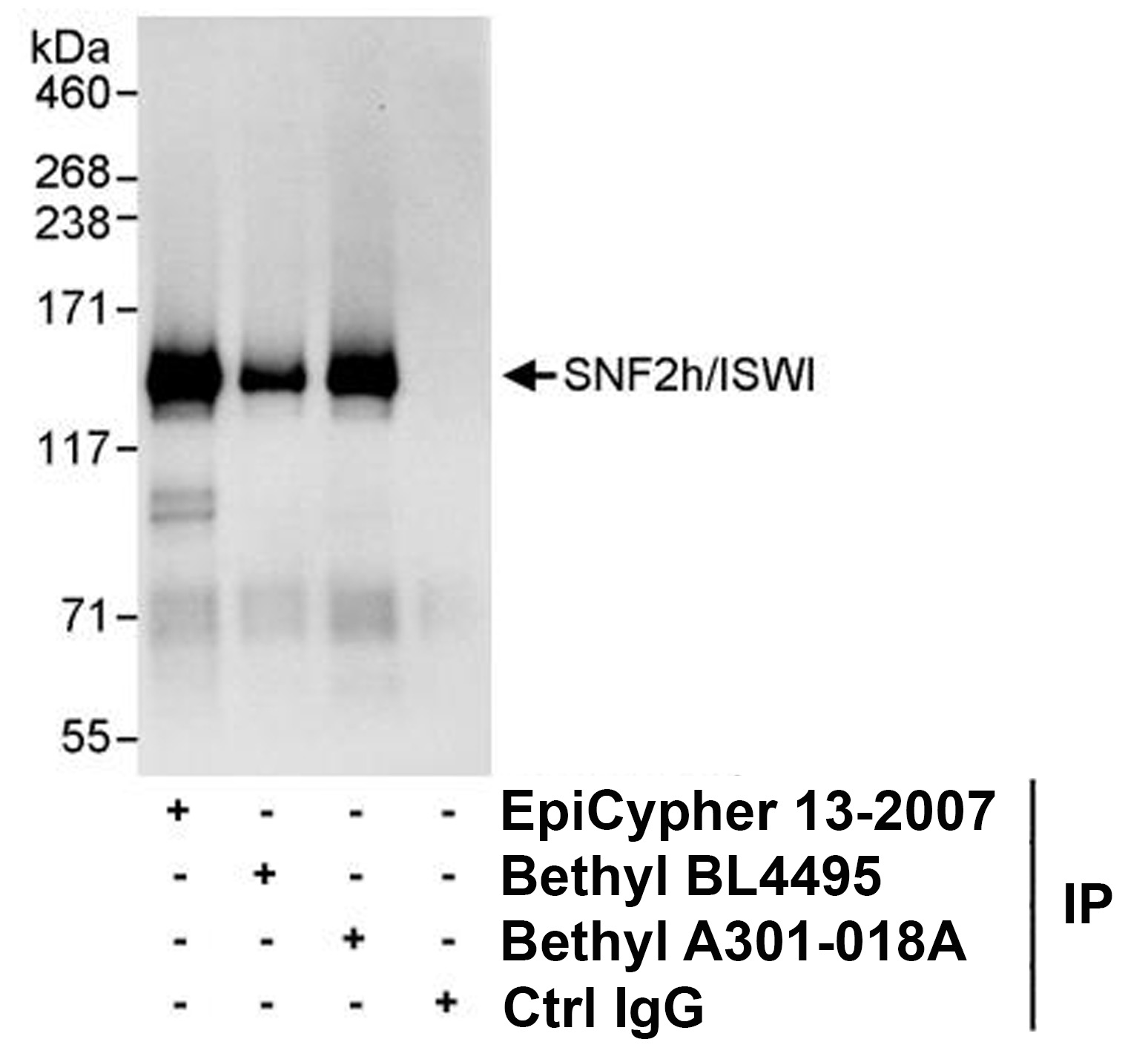

Figure 4: Immunoprecipitation data
EpiCypher SNF2H antibody (3 µg) was used to immunoprecipitate whole cell lysates isolated from HeLa cells using NETN lysis buffer (1 mg per IP). A negative control IgG antibody and positive control antibodies to different SNF2H epitopes (Bethyl Laboratories) were also used to demonstrate the specificity of the IP. Immunoprecipitates were loaded onto a 4-8% SDS-PAGE gel (20% of IP loaded) and probed via western blot with EpiCypher SNF2H antibody (1.0 µg/mL).

Technical Information

Between amino acids 50 and 100
Stable for 1 year at 4°C from date of receipt
Antigen affinity-purified antibody in Tris-buffered saline, 0.1% BSA, 0.09% sodium azide

Recommended Dilution

0.1 - 0.5 µg per reaction
Western Blot (WB):
1:2,000 - 1:10,000
Immunoprecipitation (IP):
2 - 5 µg/mg lysate

Gene & Protein Information

UniProt ID
Gene Name
Protein Name
SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily A member 5
Target Size
122 kDa
Alternate Names
WCRF135, SWI/SNF-related matrix-associated actin-dependent regulator of chromatin A5, sucrose nonfermenting protein 2 homolog (hSNF2H)


Background References:
[1] Santos-Rosa et al. Mol. Cell (2003). PMID: 14636589

Documents & Resources

Additional Info

This product is provided for commercial sale under license from Bethyl Laboratories, Inc.
