SKU: 13-2006
Pack Size: 100 µL
  • Type:  Polyclonal
  • Host:  Rabbit
  • Applications:  CUT&RUN, WB, IP
  • Reactivity:  Human
  • Format:  Antigen affinity-purified
  • Target Size: 181 kDa


This antibody meets EpiCypher’s "CUTANA Compatible" criteria for performance in Cleavage Under Targets and Release Using Nuclease (CUT&RUN) and/or Cleavage Under Targets and Tagmentation (CUT&Tag) approaches to genomic mapping. Every lot of a CUTANA Compatible antibody is tested in the indicated approach using EpiCypher optimized protocols and determined to yield peaks that show a genomic distribution pattern consistent with reported function(s) of the target protein. BRM/SMARCA2 antibody produces CUT&RUN peaks above background (Figure 1) localized to gene transcription start sites (Figures 1-2), consistent with its known role as the ATP-dependent helicase subunit of the SWI/SNF chromatin remodeler complex [1].

Validation Data

CUT&RUN was performed on 500k native or fixed (0.1% formaldehyde, 1 min) K562 cells with 0.5 µg of either BRM, H3K4me3 positive control (EpiCypher 13-0041), or IgG negative control (EpiCypher 13-0042) antibodies using the CUTANA™ ChIC/CUT&RUN Kit v2.0 (EpiCypher 14-1048). Library preparation was performed with 5 ng of DNA (or the total amount recovered if less than 5 ng) using the CUTANA™ CUT&RUN Library Prep Kit (EpiCypher 14-1001/14-1002). Both kit protocols were adapted for high throughput Tecan liquid handling. Libraries were run on an Illumina NextSeq2000 with paired-end sequencing (2x50 bp). Sample sequencing depth was 10.2 million reads (BRM native), 10.0 million reads (BRM 0.1% fixation), 4.1 million reads (H3K4me3), and 2.4 million reads (IgG). Data were aligned to the hg19 genome using Bowtie2. Data were filtered to remove duplicates, multi-aligned reads, and ENCODE DAC Exclusion List regions.

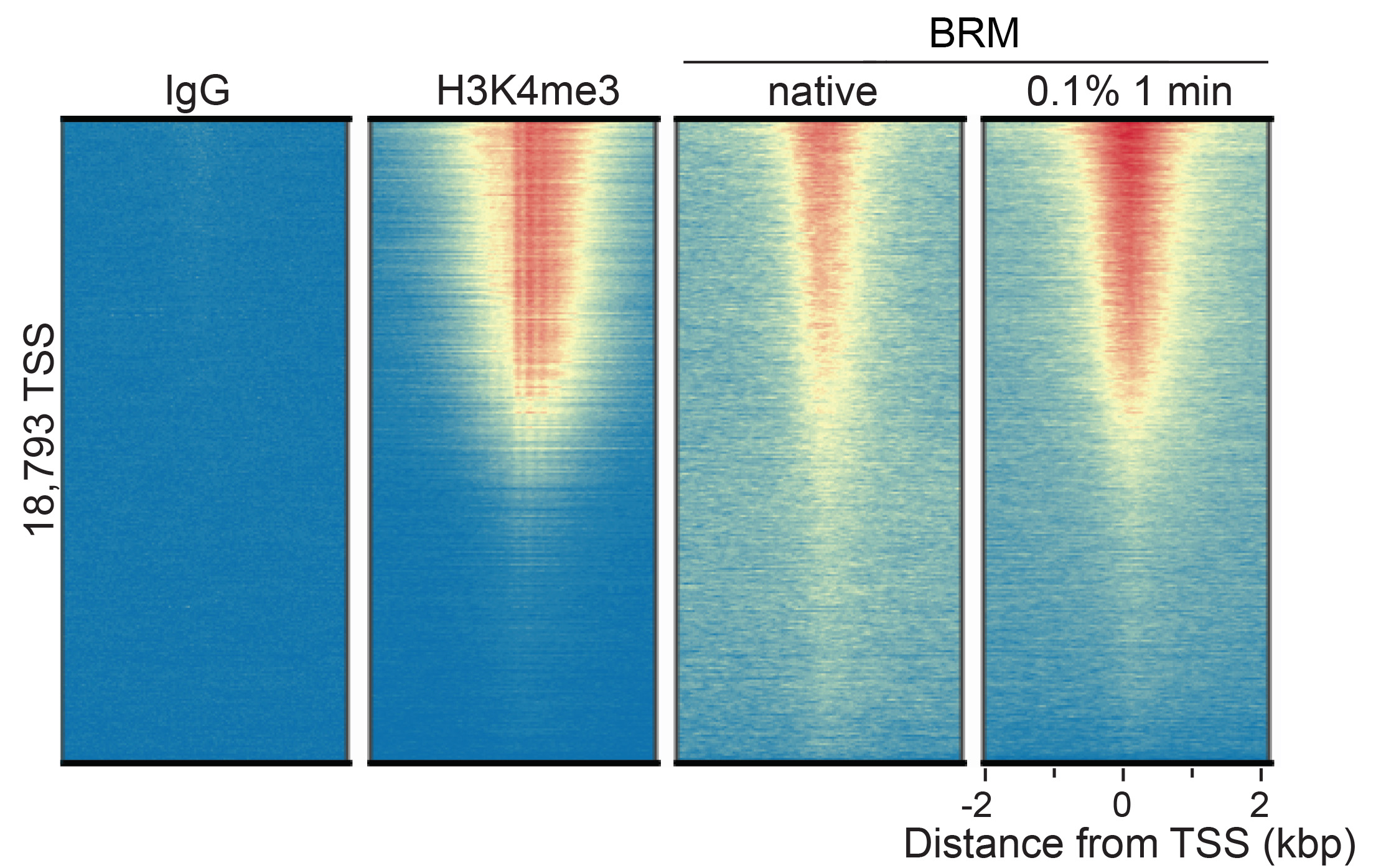

Figure 1: BRM peaks in CUT&RUN
CUT&RUN was performed as described above. Peaks were called with MACS2. Heatmaps show BRM peaks relative to IgG negative control antibody and H3K4me3 positive control antibody in aligned rows ranked by intensity (top to bottom) and colored such that red indicates high localized enrichment and blue denotes background signal. All rows aligned to BRM antibody with moderate fixation (0.1% formaldehyde, 1 min), which improved signal vs. native conditions.

Figure 2: BRM CUT&RUN representative browser tracks
CUT&RUN was performed as described above. Gene browser shots were generated using the Integrative Genomics Viewer (IGV, Broad Institute). Two gene loci show overlap of BRM and H3K4me3 peaks, consistent with the reported function of BRM as a member of the SWI/SNF chromatin remodeler complex [1]. Improved signal recovery with moderate fixation (0.1% formaldehyde, 1 min) is notable.

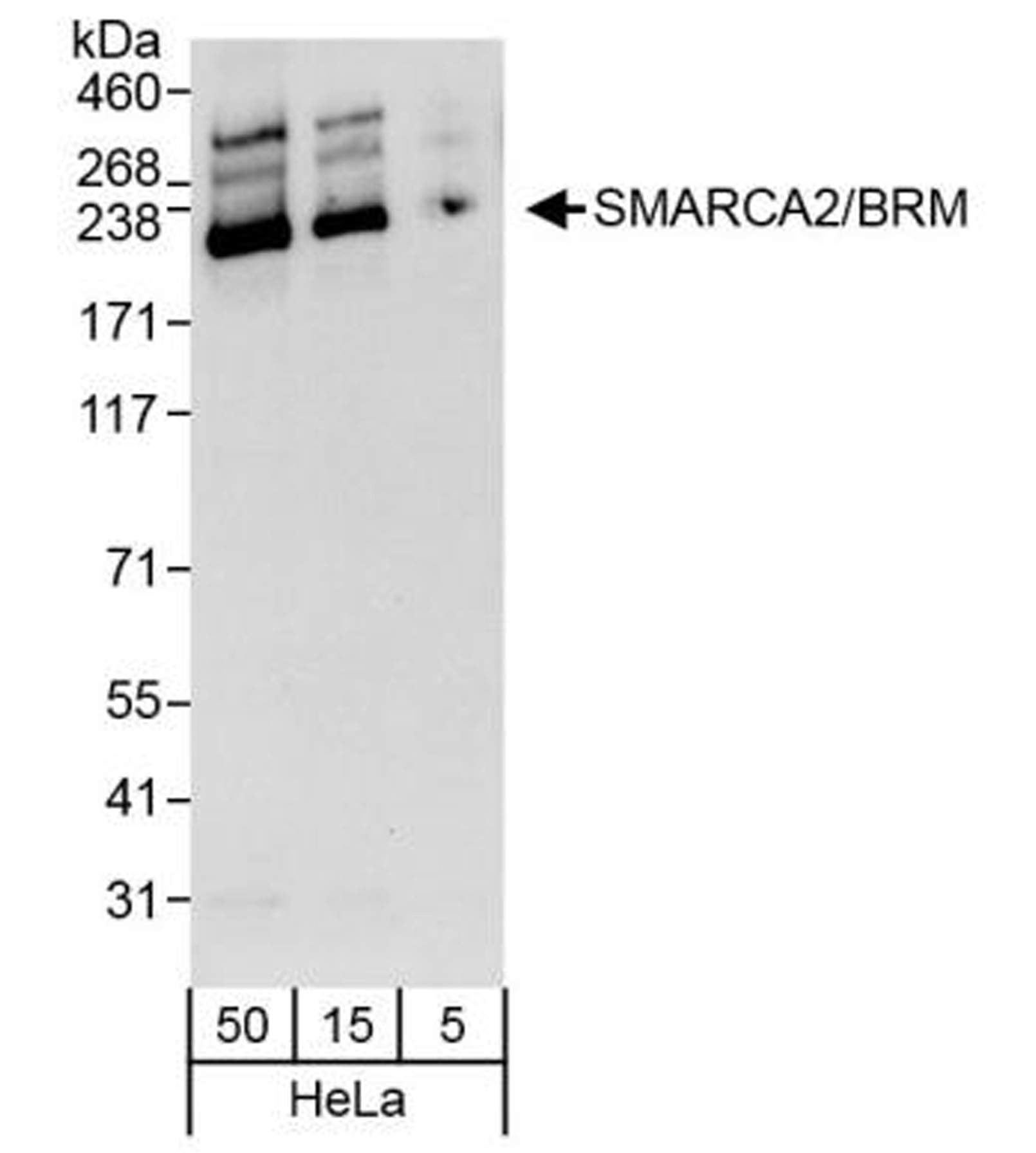

Figure 3: Western blot data
Whole cell lysates were isolated from HeLa cells using NETN lysis buffer. The indicated amounts (µg) of lysate were loaded onto a 4-8% SDS-PAGE gel and analyzed under standard western blot conditions using BRM antibody (0.04 µg/mL).

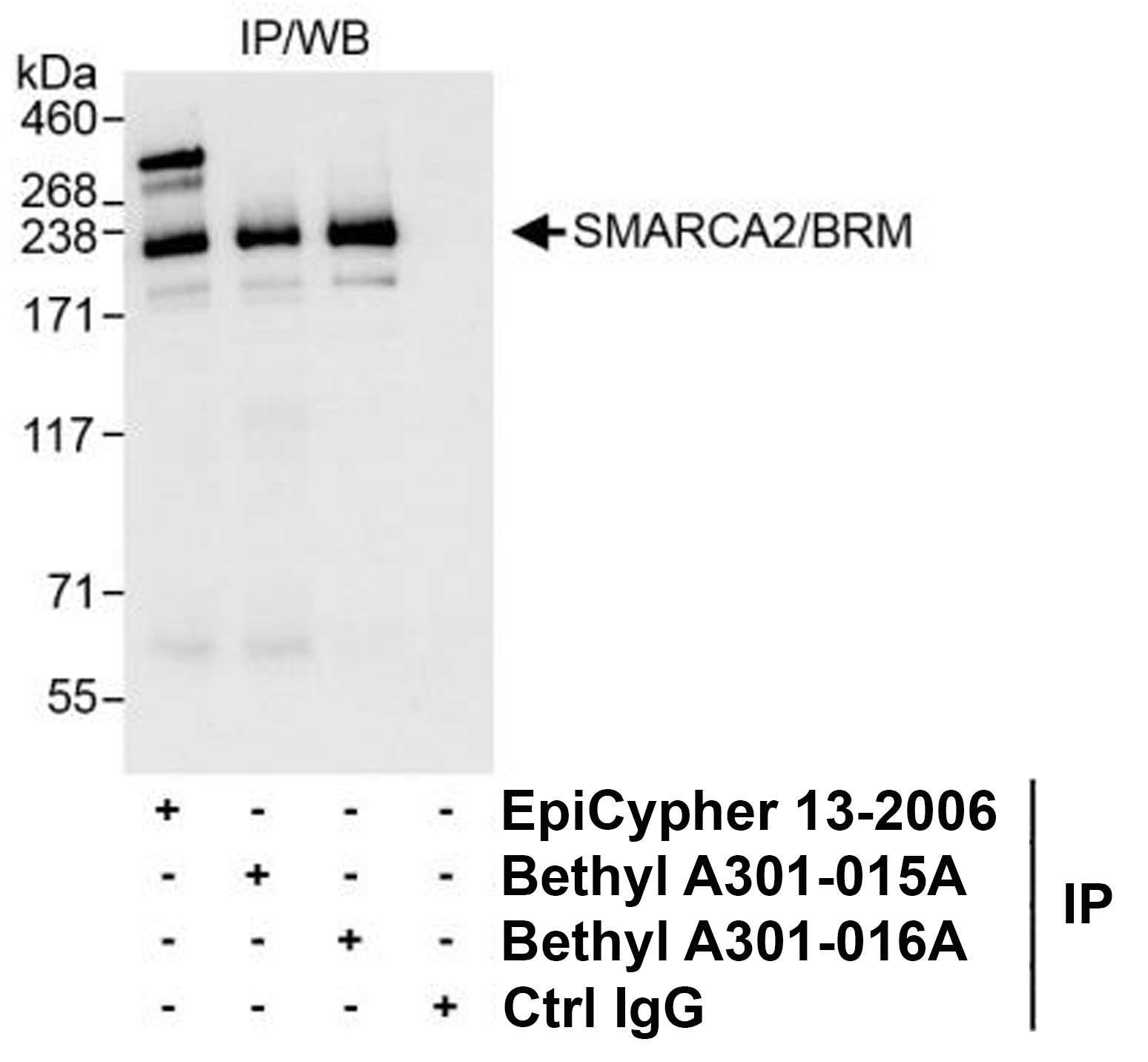

Figure 4: Immunoprecipitation data
EpiCypher BRM antibody (3 µg) was used to immunoprecipitate whole cell lysates isolated from HeLa cells using NETN lysis buffer (1 mg per IP). A negative control IgG antibody and positive control antibodies to various BRM epitopes (Bethyl Laboratories) were also used to demonstrate the specificity of the IP. Immunoprecipitates were loaded onto a 4-8% SDS-PAGE gel (20% of IP loaded) and probed via western blot with EpiCypher BRM antibody (1.0 µg/mL).

Technical Information

Between amino acids 1 and 50
Stable for 1 year at 4°C from date of receipt
Antigen affinity-purified antibody in Tris-buffered saline, 0.1% BSA, 0.09% sodium azide

Recommended Dilution

0.5 µg per reaction
Western Blot (WB):
1:2,000 - 1:10,000
Immunoprecipitation (IP):
2 - 5 µg/mg lysate

Gene & Protein Information

UniProt ID
Gene Name
Protein Name
Probable global transcription activator SNF2L2
Target Size
181 kDa
Alternate Names
BAF190B, SNF2A, SNF2L2, ATP-dependent helicase SMARCA2, BRG1-associated factor 190B (BAF190B), Protein bahma homolog (hBRM), SNF2-alpha, SWI-SNF-related matrix-associated actin-dependent regulator of chromatin subfamily A member 2


Background References:
[1] Raab et al. Epigenetics Chromatin (2017). PMID: 29273066

Documents & Resources

Additional Info

This product is provided for commercial sale under license from Bethyl Laboratories, Inc.
