Nucleosome, Recombinant Human, H3K4me2 dNuc Biotinylated

SKU: 16-0334
Select Pack Size: *

Nucleosome, Recombinant Human, H3K4me2 dNuc Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2B-O60814; H3.2-Q71DI3 *; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H3 (created by a proprietary semi-synthetic method) contains dimethyl-lysine at position 4. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147-base pair sequence that has high affinity for histone octamers and is useful for nucleosome assembly and contains a 5’ biotin-TEG group. * H3.2K4me2 has a Cys to Ala substitution at position 110.

Nucleosome, Recombinant Human, H3K4me2 dNuc Formulation: Nucleosome, Recombinant Human, H3K4me2 (50 µg total mass, DNA+protein, 27.3 µg protein weight) in 10 mM Tris HCl, pH 7.5, 25 mM NaCl, 1 mM EDTA, 2 mM DTT, 20% glycerol. MW = 200,463.

Nucleosome, Recombinant Human, H3K4me2 dNuc Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H3K4me2 dNuc Application Notes: Nucleosome, Recombinant Human, H3K4me2 are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments. Nucleosome, Recombinant Human, H3K4me2 from EpiCypher does not contain free DNA which could alter assayed activities.


View technical datasheet for this product. 16-0334 Datasheet
16-0334 Western Blot

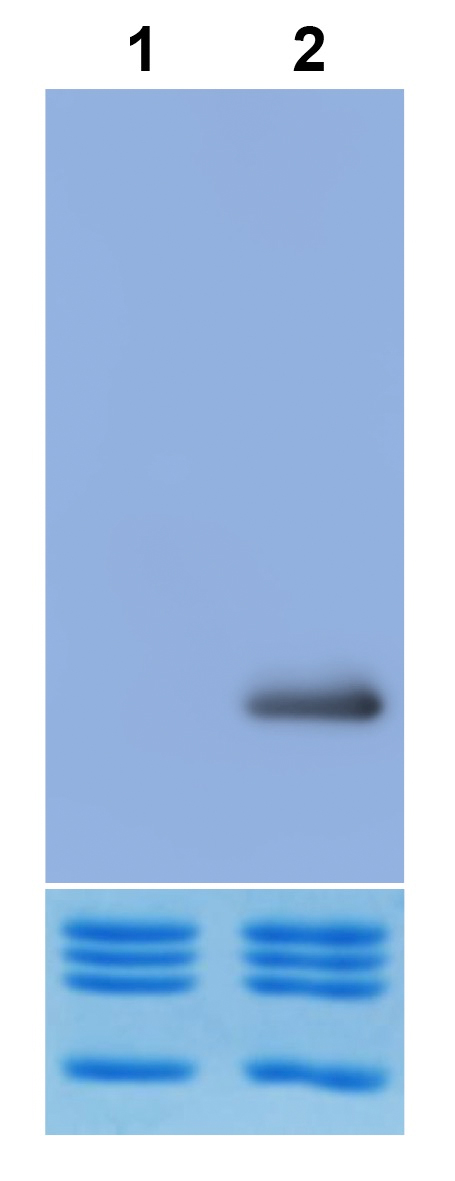

Western Blot Data: Western Analysis of Nucleosome, Recombinant Human, H3K4me2. Top Panel: Unmodified H3 (Lane 1) and H3K4me2 containing nucleosomes (Lane 2) were probed with an anti-H3K4me2 antibody and analyzed via ECL readout. Only the H3K4me2 sample produced a detectable signal.
Bottom Panel: Detail from Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H3K4me2 nucleosomes (Lane 2).
(Click image to enlarge)

16-0334 MS Data

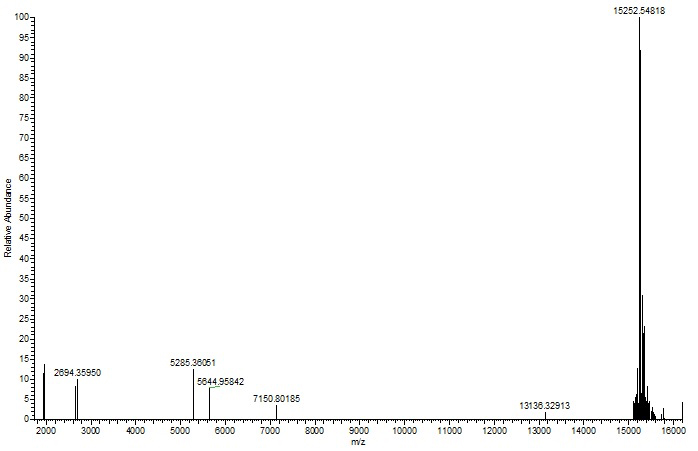

Mass Spec Data: Synthetic H3K4me2 protein analyzed by nanospray-orbitrap high resolution mass spectrometry. Expected mass = 15,252.8 Da. Determined mass = 15,252.5 Da.
(Click image to enlarge)

16-0334 Protein Gel Data
Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H3K4me2 (1 µg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2A, H2B, H3K4me2 and H4) are indicated.
(Click image to enlarge)

16-0334 Protein Gel Data

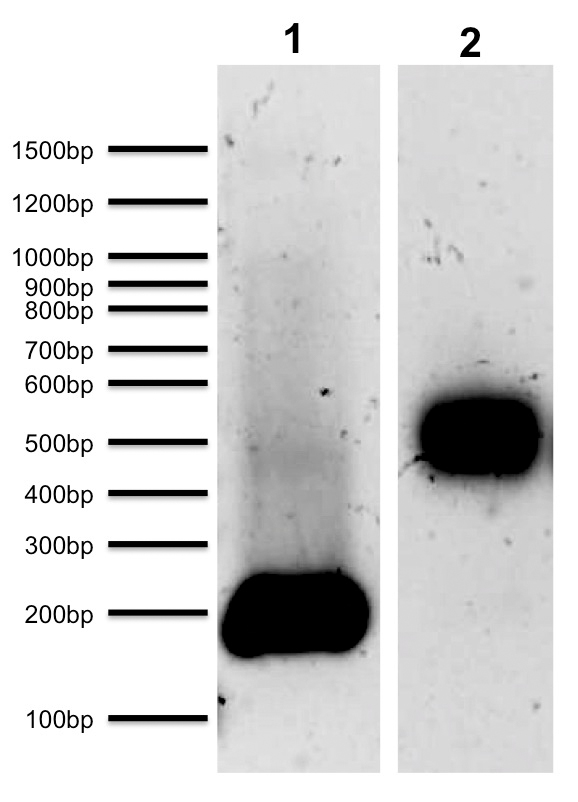

DNA Gel Data: Nucleosome, Recombinant Human, H3K4me2 run on an agarose gel and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA extracted from nucleosomes (200 ng). Lane 2: Intact nucleosomes (400 ng).
(Click image to enlarge)
