Nucleosome, Recombinant Human, H3K18cr dNuc, Biotinylated

SKU: 16-0337
Pack Size: 50 μg
Select Pack Size *
Nucleosome, Recombinant Human, H3K18cr dNuc, Biotinylated Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2BO60814; H3.2-Q71DI3 *; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H3 (created by a proprietary semi-synthetic method) contains crotonyl-lysine at position 18. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147-base pair sequence that has high affinity for histone octamers and is useful for nucleosome assembly and contains a 5’ biotin-TEG group. * H3K18cr has a Cys to Ala substitution at position 110.

Nucleosome, Recombinant Human, H3K18cr dNuc Biotinylated Formulation: Nucleosome, Recombinant Human, H3K18cr (27.3 μg protein weight, 50.0 μg DNA+protein) in 10mM Tris HCl, pH 7.5, 25mM NaCl, 1mM EDTA, 2mM DTT, 20% glycerol. MW = 199,997.8 Da.

Nucleosome, Recombinant Human, H3K18cr dNuc Biotinylated Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H3K18cr dNuc Biotinylated Application Notes: Nucleosome, Recombinant Human, H3K18cr are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments. Nucleosome, Recombinant Human, H3K18cr from EpiCypher does not contain free DNA which could alter assayed activities.


View technical datasheet for this product. 16-0337 Datasheet
16-0337 Western Blot

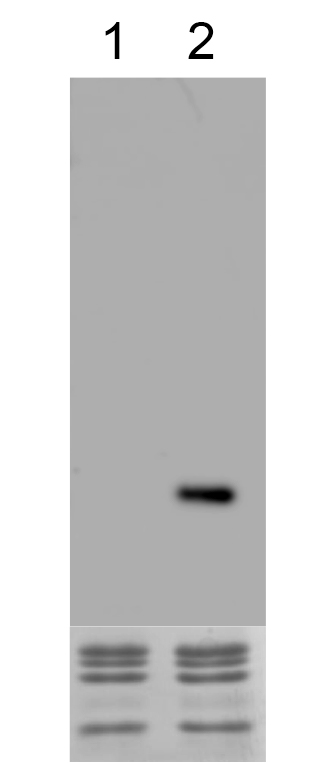

Western Blot Data:Western Analysis of Nucleosome, Recombinant Human, H3K18cr. Top Panel: Unmodified H3 (Lane 1) and H3K18cr containing nucleosomes (Lane 2) were probed with an anti-H3K18cr antibody and analyzed via ECL readout. Only the H3K18cr sample produced a detectable signal. Bottom Panel: Detail from Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H3K18cr nucleosomes (Lane 2).
(Click image to enlarge)

16-0337 MS Data

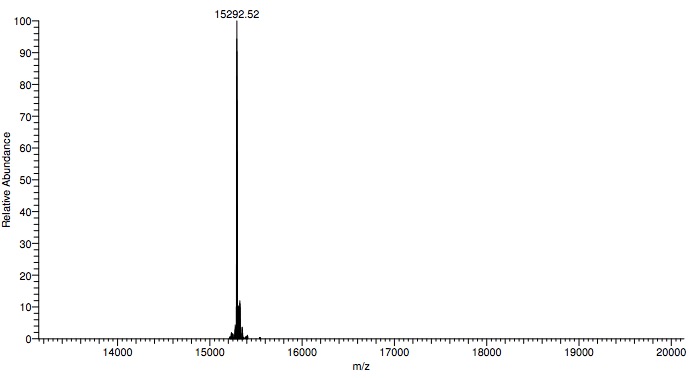

Mass Spec Data:Synthetic H3K18cr protein analyzed by high resolution mass spectrometry. Expected mass = 15,291.8 Da. Determined mass = 15,292.5 Da.
(Click image to enlarge)

16-0337 Protein Gel Data

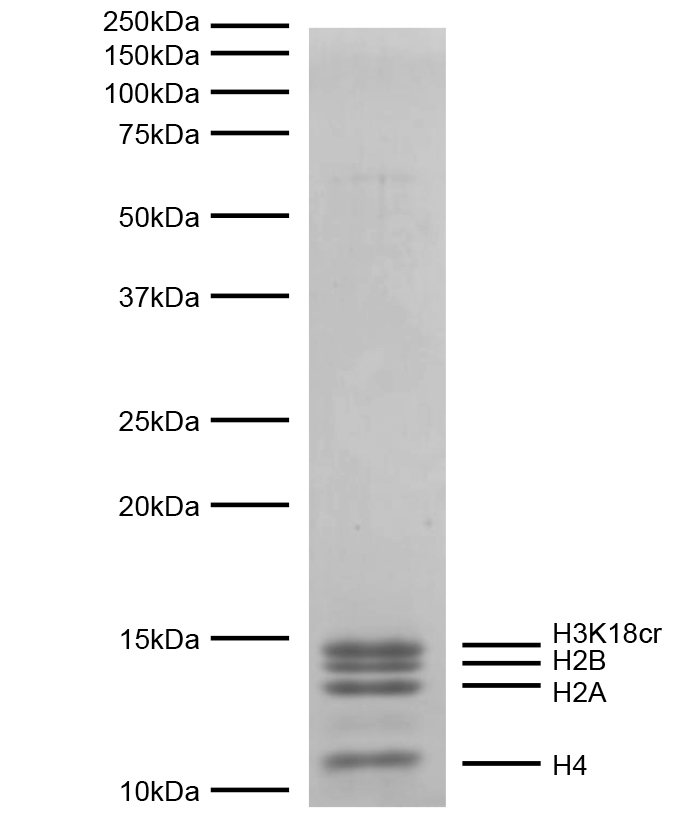

Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H3K18cr (1 μg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2A, H2B, H3K18cr and H4) are indicated.
(Click image to enlarge)

16-0337 DNA Gel Data

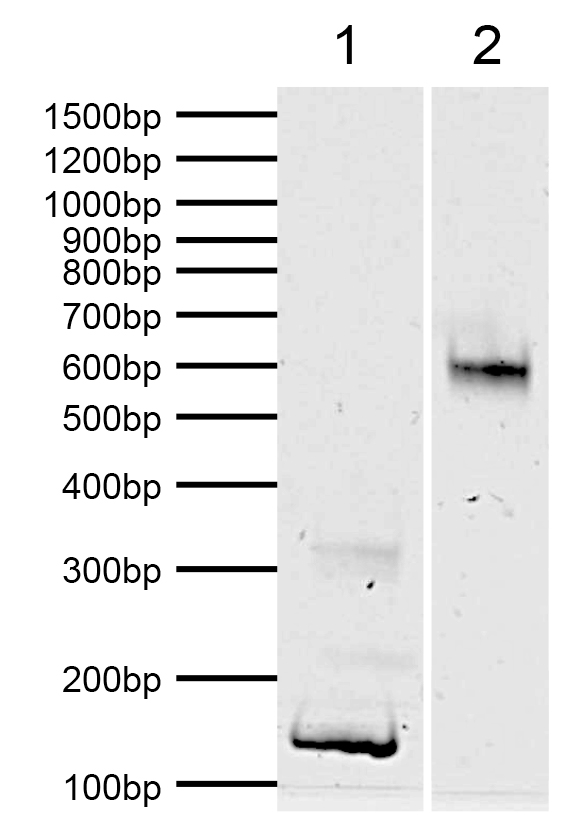

DNA Gel Data: Nucleosome, Recombinant Human, H3K18cr via native PAGE and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA (100 ng). Lane 2: Intact H3K18cr containting nucleosomes (400 ng).
(Click image to enlarge)
