Nucleosome, Recombinant Human, H3K9cr dNuc

SKU: 16-0351
Pack Size: 50 μg
Select Pack Size *
Nucleosome, Recombinant Human, H3K9cr dNuc Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2BO60814; H3.2-Q71DI3 *; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H3 (created by a proprietary semi-synthetic method) contains crotonyl-lysine at position 9. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147-base pair sequence that has high affinity for histone octamers and is useful for nucleosome assembly and contains a 5’ biotin-TEG group. * H3K9cr has a Cys to Ala substitution at position 110.

Nucleosome, Recombinant Human, H3R2me2s dNuc Biotinylated Formulation: Nucleosome, Recombinant Human, H3K9cr (27.3 μg protein weight, 50.0 μg DNA+protein) in 36.2 μl 10mM Tris HCl, pH 7.5, 25mM NaCl, 1mM EDTA, 2mM DTT, 20% glycerol. Molarity = 6.90 μmolar. MW = 199997.8 Da.

Nucleosome, Recombinant Human, H3R2me2s dNuc Biotinylated Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H3R2me2s dNuc Biotinylated Application Notes: Nucleosome, Recombinant Human, H3K9cr are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments. Nucleosome, Recombinant Human, H3K9cr from EpiCypher does not contain free DNA which could alter assayed activities.


View technical datasheet for this product. 16-0351 Datasheet
16-0351 Western Blot

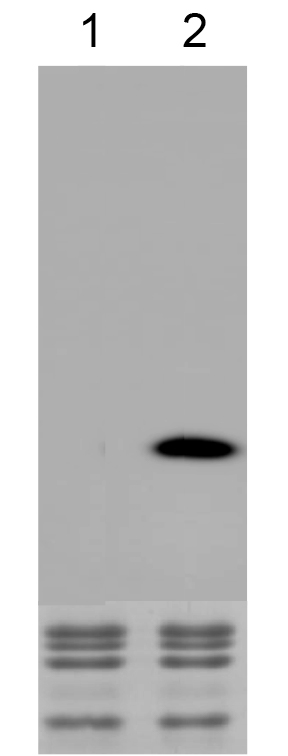

Western Blot Data:Western Analysis of Nucleosome, Recombinant Human, H3K9cr. Top Panel: Unmodified H3 (Lane 1) and H3K9cr containing nucleosomes (Lane 2) were probed with an anti-H3K9cr antibody and analyzed via ECL readout. Only the H3K9cr sample produced a detectable signal. Bottom Panel: Detail from Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H3K9cr nucleosomes (Lane 2).
(Click image to enlarge)

16-0351 MS Data

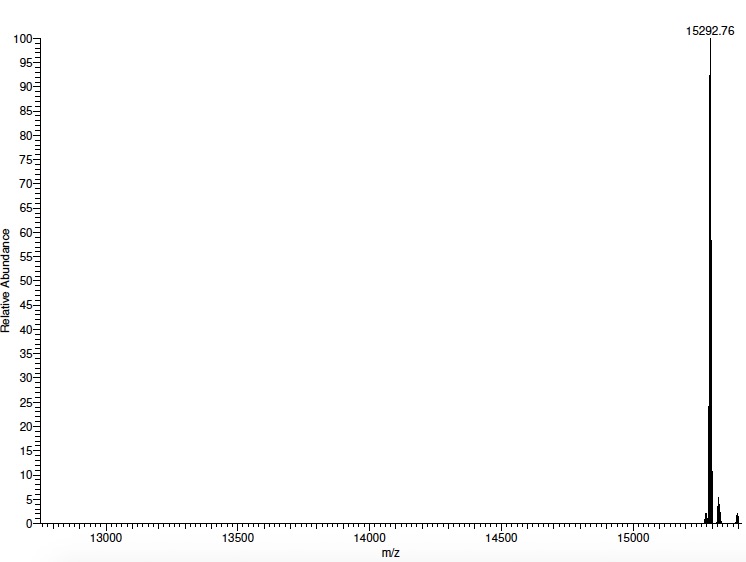

Mass Spec Data: Synthetic H3K9cr protein analyzed by high resolution mass spectrometry. Expected mass = 15,291.8 Da. Determined mass = 15,292.8Da.

16-0351 Protein Gel Data
Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H3K9cr (1 μg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2A, H2B, H3K9cr and H4) are indicated.
(Click image to enlarge)

16-0351 DNA Gel Data

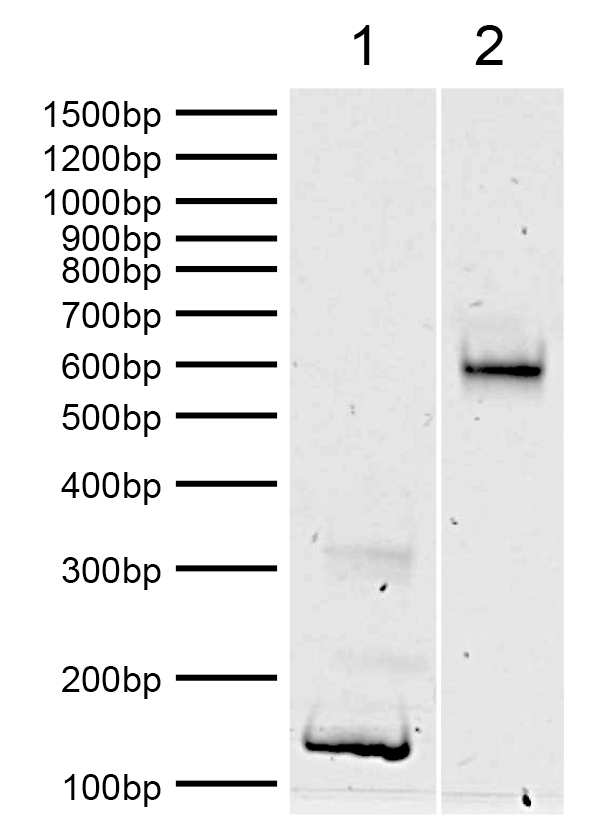

DNA Gel Data: Nucleosome, Recombinant Human, H3K9cr via native PAGE and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA extracted from nucleosomes (100 ng). Lane 2: Intact nucleosomes (400 ng).
(Click image to enlarge)

Current stock: 0
