Nucleosome, Recombinant Human, H3K4,9,14,18ac dNuc, Biotinylated

SKU: 16-0336
Pack Size: 50 μg
Select Pack Size *
Nucleosome, Recombinant Human, H3K4,9,14,18ac dNuc, Biotinylated Description: Mononucleosomes assembled from recombinant human histones expressed in E. coli (two each of histones H2A, H2B, H3 and H4; accession numbers: H2A-P04908; H2B-O60814; H3.2-Q71DI3 *; H4-P62805) wrapped by 147 base pairs of 601 positioning sequence DNA. Histone H3 (created by a proprietary semi-synthetic method) contains acetyl-lysine at positions 4, 9, 14, and 18. The nucleosome is the basic subunit of chromatin. The 601 sequence, identified by Lowary and Widom, is a 147- base pair sequence that has high affinity for histone octamers and is useful for nucleosome assembly and contains a 5’ biotin- TEG group. * H3K4,9,14,18ac also has a Cys to Ala substitution at position 110.

Nucleosome, Recombinant Human, H3K4,9,14,18ac dNuc Biotinylated Formulation: Nucleosome, Recombinant Human, H3K4,9,14,18ac (27.3μg protein weight, 50 μg total weight) in 10 mM Tris HCl, pH 7.5, 25 mM NaCl, 1 mM EDTA, 2 mM DTT, 20% glycerol. MW = 200,644 Da.

Nucleosome, Recombinant Human, H3K4,9,14,18ac dNuc, Biotinylated Storage and Stability: Stable for six months at -80°C from date of receipt. For best results, aliquot and avoid multiple freeze/thaws.

Nucleosome, Recombinant Human, H3K4,9,14,18ac dNuc, Biotinylated Application Notes: Nucleosome, Recombinant Human, H3K4,9,14,18ac dNucs are highly purified and are suitable for use as substrates in enzyme screening assays or for effector protein binding experiments. Nucleosome, Recombinant Human, H3K4,9,14,18ac dNucs from EpiCypher does not contain free DNA which could alter assayed activities.


View technical datasheet for this product. 16-0336 Datasheet
16-0336 Western Blot
Western Blot Data:Western Analysis of Nucleosome, Recombinant Human, H3K4,9,14,18ac. Top Panel: Unmodified H3 (Lane 1) and H3K4,9,14,18ac containing nucleosomes (Lanes 2-5) were probed with an anti-H3K4ac, anti-H3K9ac, anti-H3K14ac, and anti-H3K18ac antibodies and analyzed via ECL readout. Only the H3K4,9,14,18ac sample produced a detectable signal. Bottom Panel: Detailfrom Coomassie stained gel showing unmodified nucleosomes (Lane 1) and H3K4,9,14,18ac nucleosomes (Lane 2-5).
(Click image to enlarge)

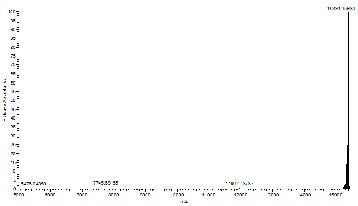

16-0336 MS Data
Mass Spec Data:H3K4,9,14,18ac protein analyzed by high resolution mass spectrometry. Expected mass = 15,389.8 Da. Determined mass = 15,391.4 Da.
(Click image to enlarge)

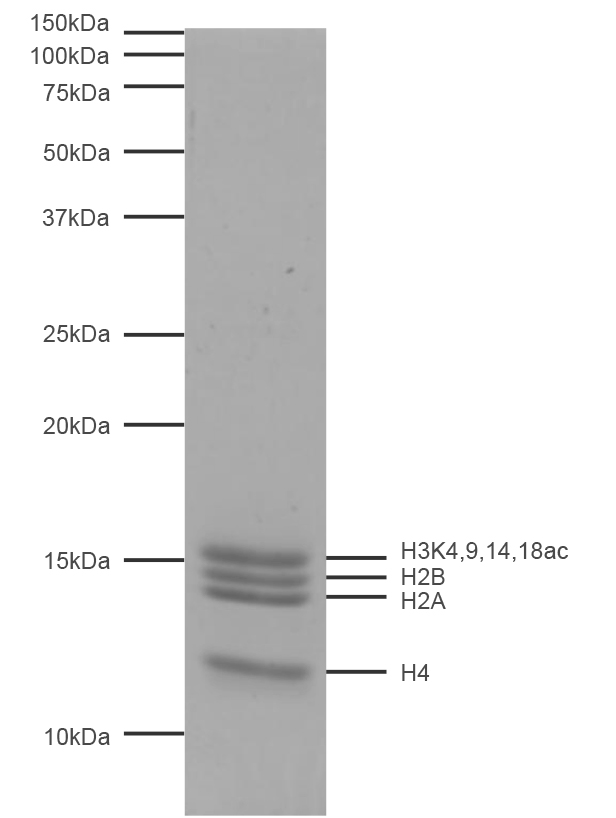

16-0336 Protein Gel Data
Protein Gel Data: Coomassie stained PAGE gel of proteins in Nucleosome, Recombinant Human, H3K4,9,14,18ac(1 μg) to demonstrate the purity of the histones in the preparation. Sizes of molecular weight markers and positions of the core histones (H2A, H2B, H3K4,9,14,18ac and H4) are indicated.
(Click image to enlarge)

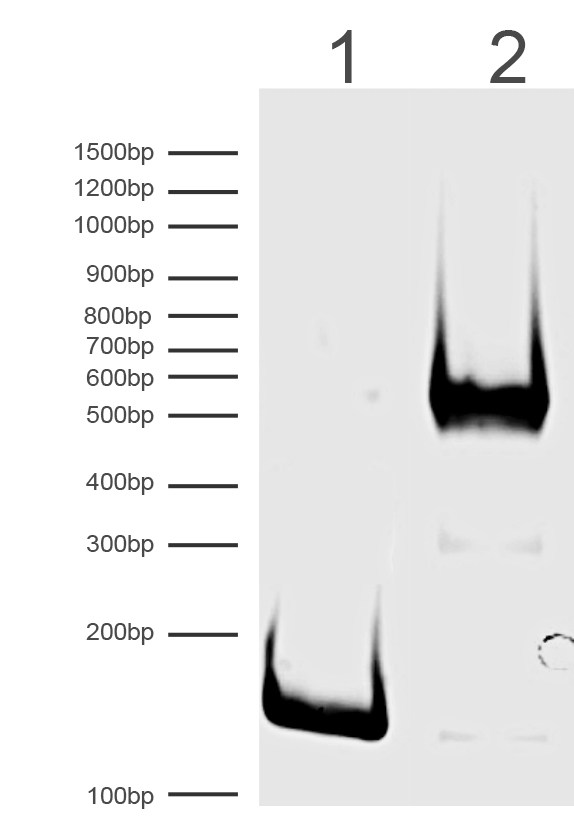

16-0336 DNA Gel Data
DNA Gel Data: Nucleosome, Recombinant Human, H3K4,9,14,18ac run on a native PAGE gel and stained with ethidium bromide to visualize DNA. Lane 1: Free DNA (200 ng). Lane 2: Intact nucleosomes (400 ng).
(Click image to enlarge)
